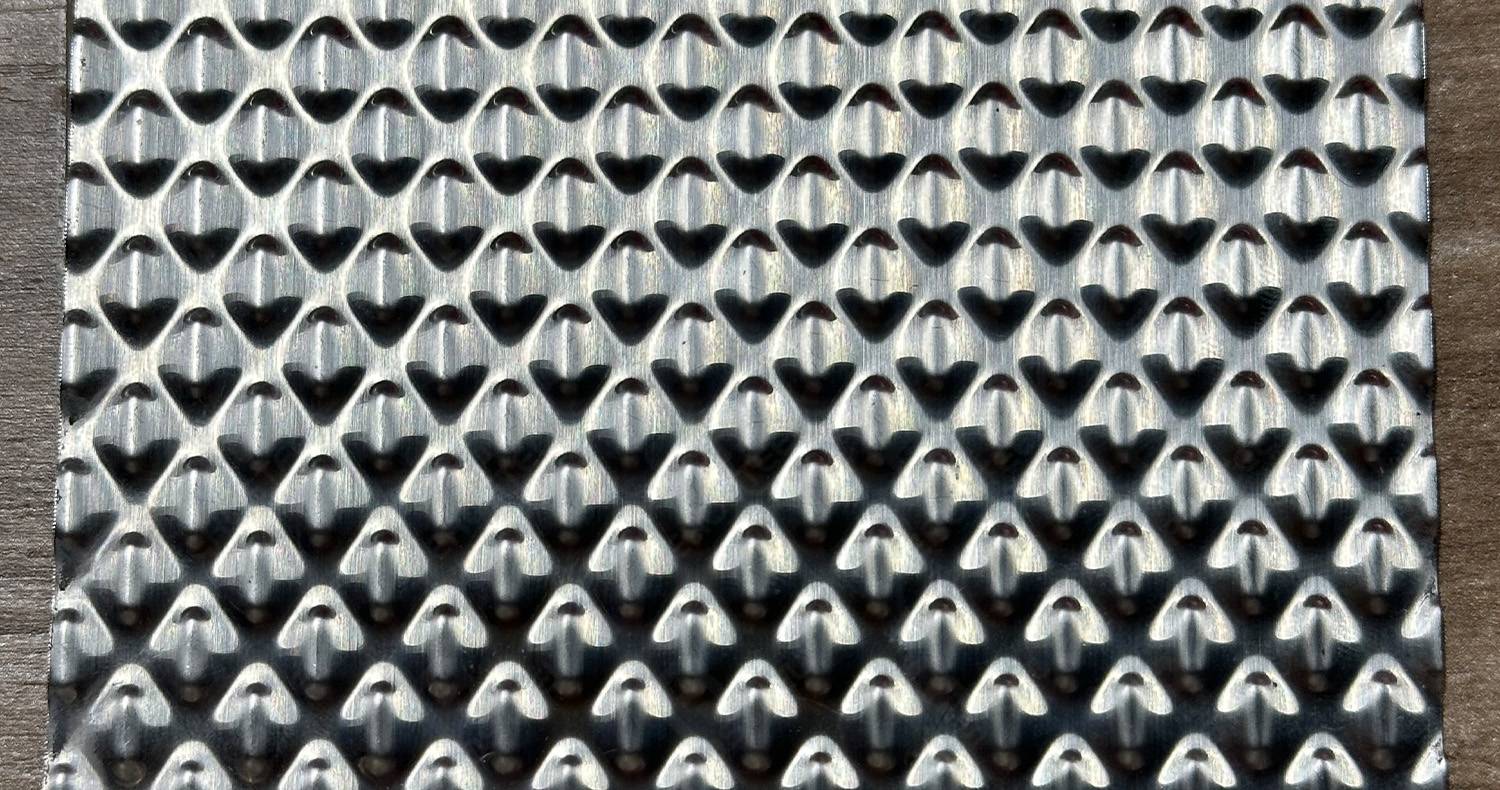

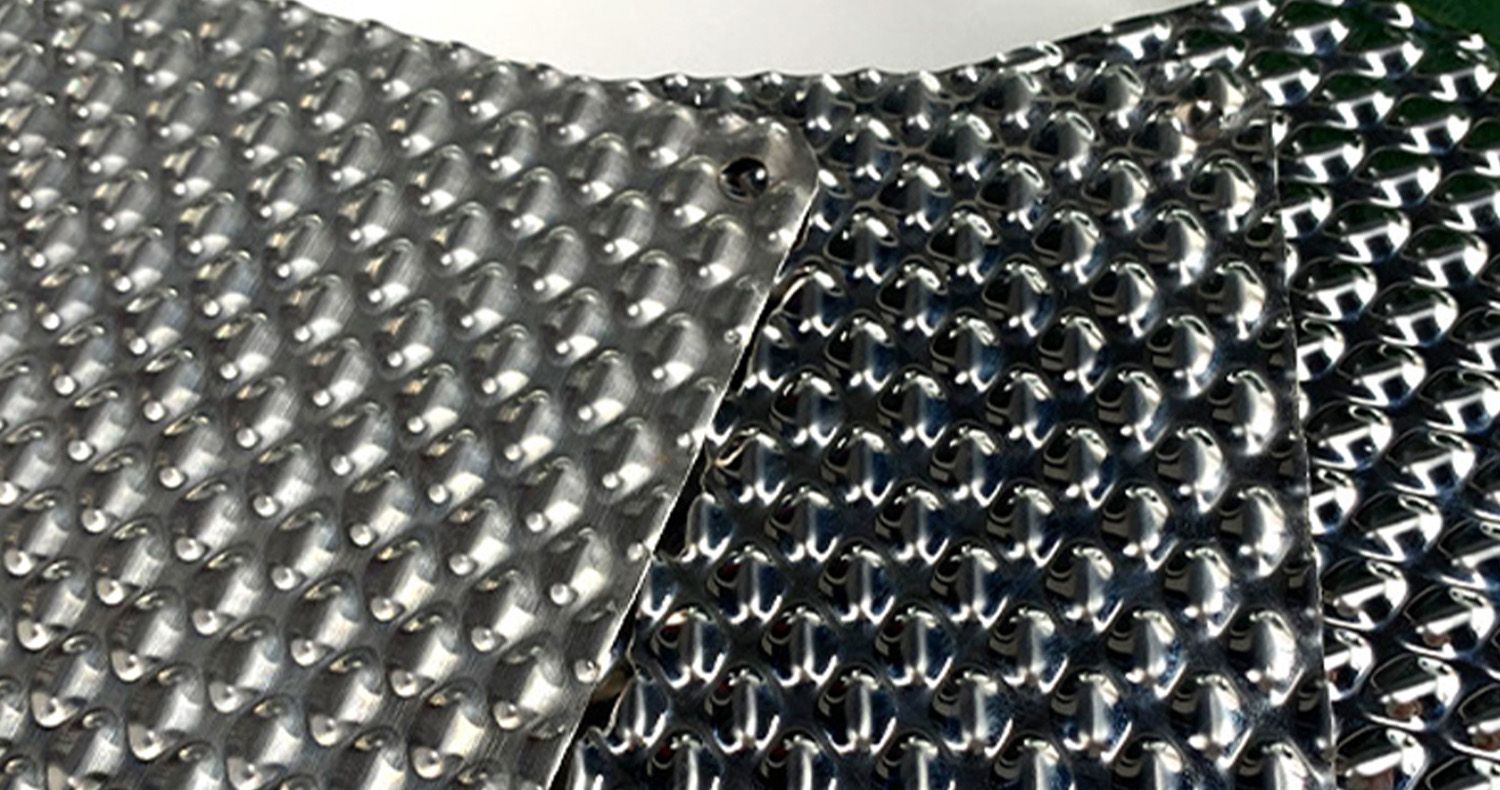

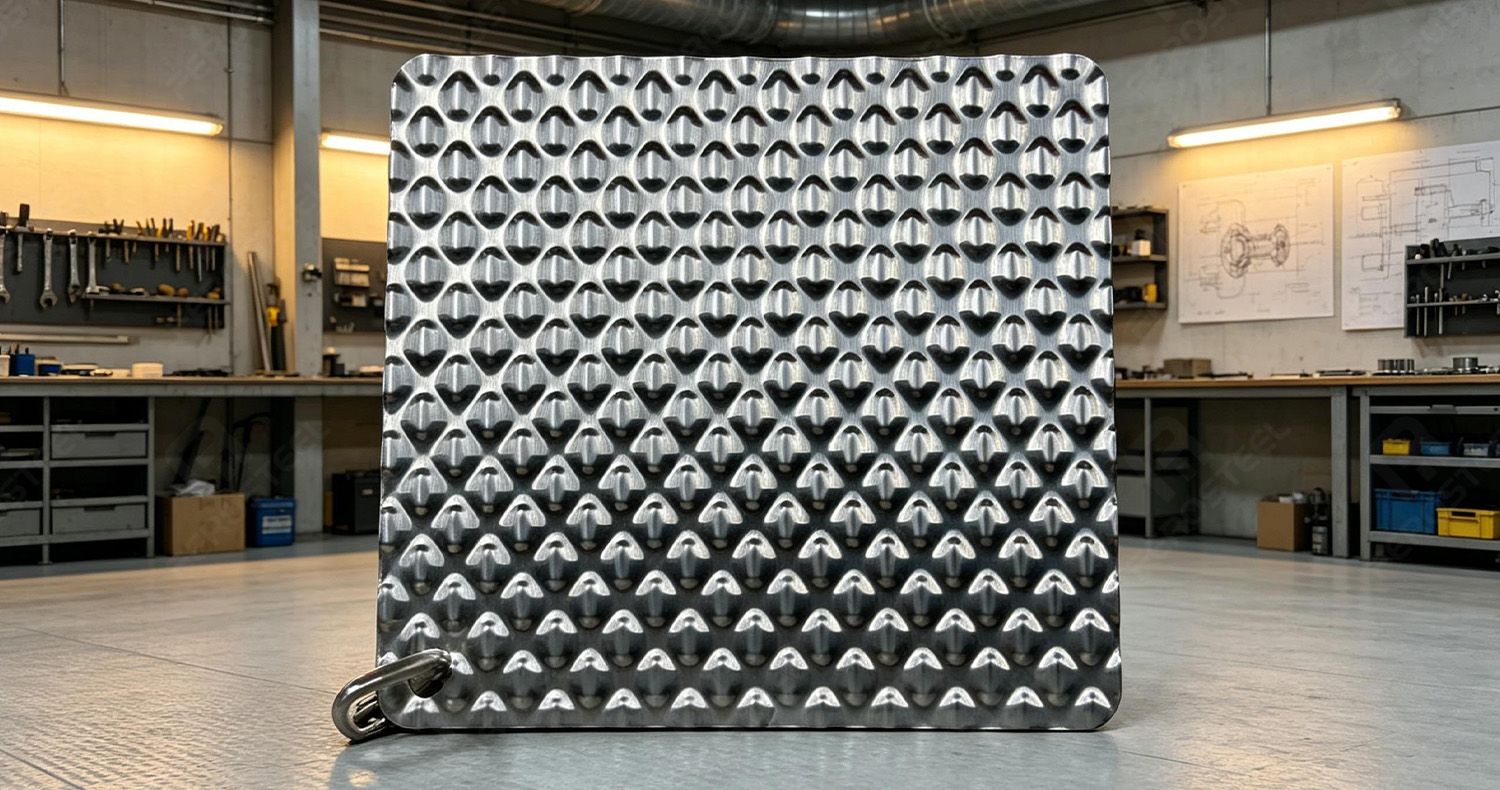

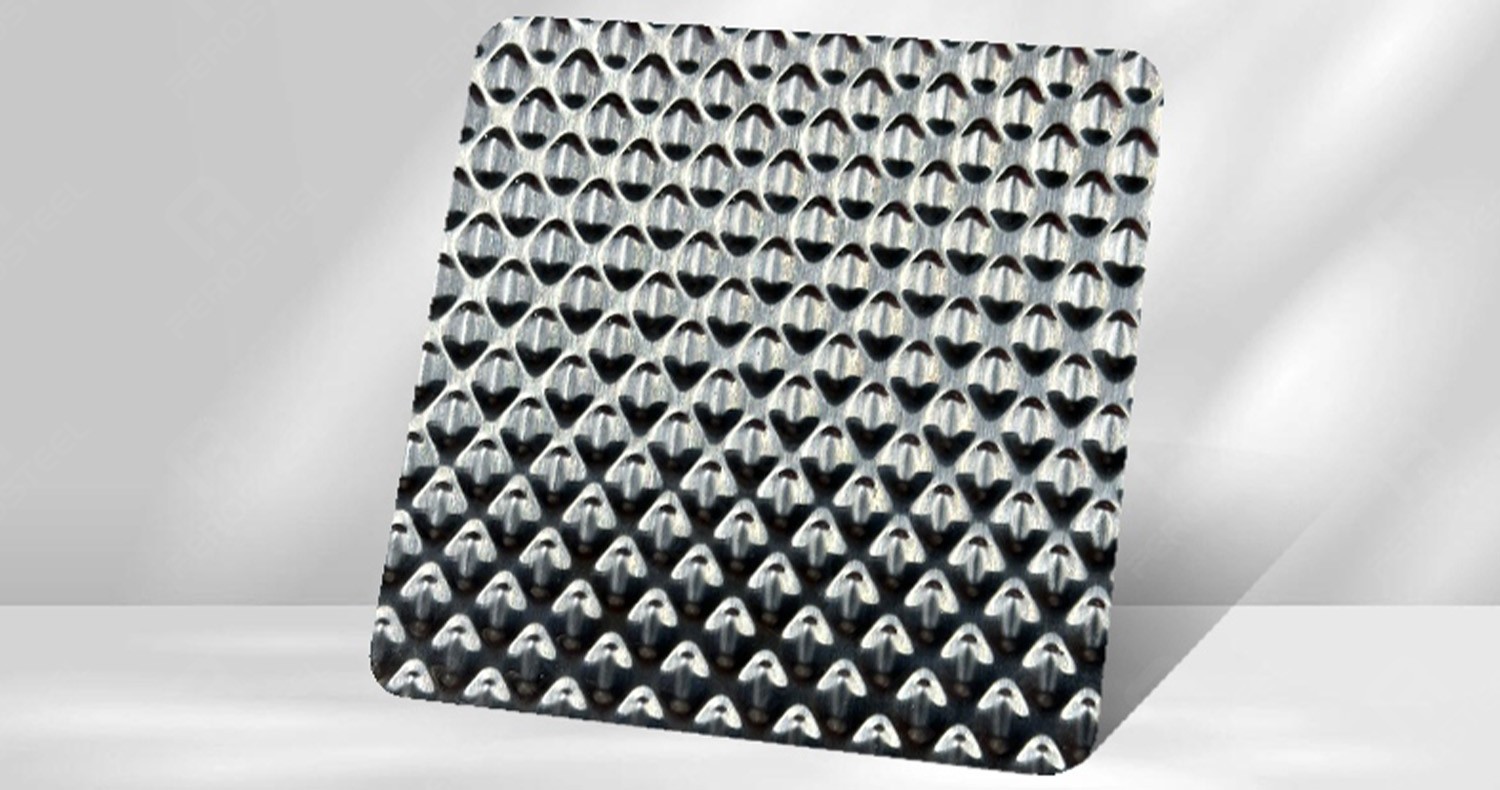

6WL rain drop stainless steel is a rigidized textured metal finish created through a precision stamping process that embosses a distinctive rain-drop pattern onto stainless steel sheet surfaces. The designation "6WL" refers to the specific die pattern number used in the stamping process, producing a larger, more pronounced drop-shaped indentation compared to its smaller counterpart, the 5WL finish.
Unlike flat or mirror-polished stainless steel, the 6WL rain drop finish introduces a three-dimensional texture that diffuses light, reduces glare, and adds tactile depth to architectural surfaces. The pattern resembles water droplets frozen on a metal canvas — an aesthetic that has become increasingly popular in elevator interiors, commercial wall cladding, and hospitality design projects worldwide.
For architects and interior designers seeking a balance between visual drama and functional durability, 6WL rain drop stamped stainless steel offers a proven solution that bridges decorative appeal with the structural integrity of rigidized metal.
The manufacturing process for 6WL rigidized stainless steel involves several controlled steps:
The rigidized stamping process increases the sheet's effective stiffness by approximately 15–20%, which means thinner gauges can achieve the same structural performance as thicker flat sheets — a valuable advantage for weight-sensitive applications like elevator cab interiors.
Understanding the differences between textured stainless steel patterns helps designers select the right finish for each application. Below is a detailed comparison:
| Feature | 6WL Rain Drop | 5WL Small Rain Drop | Water Ripple | Moon Rock |
|---|---|---|---|---|
| Pattern Size | Large (~15–18mm drops) | Small (~8–10mm drops) | Undulating wave | Irregular rock texture |
| Depth | Deep emboss (~0.8–1.2mm) | Moderate (~0.4–0.6mm) | Shallow wave (~0.3mm) | Deep irregular (~0.8mm) |
| Light Reflection | Strong diffusion, minimal glare | Moderate diffusion | Soft directional reflection | Random diffusion |
| Stiffness Gain | ~18–20% | ~12–15% | ~8–10% | ~18–20% |
| Best Application | Elevator cabs, large wall panels | Furniture accents, small panels | Ceilings, backsplashes | Feature walls, luxury spaces |
| Visual Impact | Bold, dramatic | Subtle, refined | Flowing, organic | Raw, natural |
| Cleaning Ease | Easy — smooth drop contours | Moderate — smaller crevices | Easy — wave is shallow | Moderate — irregular surface |
| Available Grades | 201, 304, 316L | 201, 304, 316L | 201, 304, 316L | 304, 316L |
The 6WL pattern stands out for its bold visual presence and structural stiffening effect. When projects demand a finish that commands attention — such as elevator cab walls or hotel lobby partitions — the larger drop pattern of 6WL delivers a more dramatic result than the subtler 5WL finish.
Elevator cabs remain the single most common application for 6WL rain drop stainless steel. The pattern's light-diffusing quality minimizes the reflective glare that plagues mirror-finished elevator interiors, while the rigidized texture adds structural rigidity that helps thinner panels withstand the vibration and impact loads typical in elevator environments. The deep emboss also conceals minor scratches and fingerprints far better than flat finishes — a practical advantage in high-traffic buildings.
Designers frequently pair 6WL panels with antique bronze hairline stainless steel accent strips or brushed stainless steel trims to create a layered, sophisticated cab interior.
In commercial spaces — hotel lobbies, restaurant dining areas, retail storefronts — 6WL panels serve as decorative wall cladding that combines visual interest with durability. The stamped pattern catches ambient light differently depending on viewing angle, creating a dynamic surface that shifts in appearance throughout the day as natural and artificial lighting changes.
Restaurant interiors benefit from 6WL stainless steel in multiple ways: backsplash panels behind open kitchens, decorative partition walls between dining zones, and bar front cladding. The rain drop pattern's easy-to-clean surface is particularly valued in food-service environments where hygiene standards demand wipe-down capable materials.
Smaller 6WL panels are increasingly used in custom furniture — reception desk fronts, conference table side panels, and reception area feature walls. When combined with PVD color coatings, the 6WL pattern takes on gold, bronze, black, or rose gold hues that expand design possibilities beyond the standard silver stainless steel appearance.
| Specification | Standard Range |
|---|---|
| Available Grades | 201, 304, 316L |
| Sheet Thickness | 0.5mm – 2.0mm (common: 0.8mm, 1.0mm, 1.2mm) |
| Standard Sizes | 1220mm × 2440mm (4' × 8'), 1220mm × 3040mm (4' × 10') |
| Custom Sizes | Available upon request |
| Pattern Depth | 0.8mm – 1.2mm |
| Surface Finish Options | Raw stamped, hairline, bead blast, mirror, PVD colored |
| PVD Color Options | Gold, rose gold, bronze, black, champagne, blue |
| MOQ | 50 sheets per order (negotiable for trial orders) |
Grade Selection Guidance:
The 6WL rain drop pattern is typically stamped in a consistent directional alignment. During installation planning, designers should specify whether panels will be mounted with the drop pattern running vertically (most common for elevator cabs) or horizontally (preferred for wall cladding where a "rain falling" visual metaphor enhances the design intent).
Because rigidized sheets are thicker in effective depth due to the emboss, edge detailing requires attention. Common approaches include:
The 6WL pattern responds dramatically to directional lighting. Designers should consider:
For high-touch surfaces like elevator panels, specify an anti-fingerprint (AF) clear coat over the 6WL finish. This nano-coating reduces visible fingerprint marks by up to 90% while maintaining the pattern's tactile texture and visual character.
"6WL" is a pattern designation from the rigidized stainless steel classification system. The number refers to the specific die pattern used during the stamping process, and "WL" indicates a wave-like or drop-shaped configuration. The 6WL pattern produces larger, deeper rain drop indentations compared to the 5WL small rain drop pattern.
The primary difference is pattern scale. 6WL drops are approximately 15–18mm in diameter with a depth of 0.8–1.2mm, creating a bold, dramatic texture. 5WL drops are roughly 8–10mm with shallower depth (0.4–0.6mm), producing a subtler, more refined appearance. For large-format applications like elevator cabs, 6WL is preferred; for smaller accent panels, 5WL is often more appropriate.
Yes, with the correct grade selection. For exterior use, 316L marine-grade stainless steel is recommended, particularly in coastal or high-humidity environments. The 6WL rigidized texture actually performs well outdoors because the embossed pattern helps diffuse sunlight and reduces the heat absorption that flat dark-finish panels can experience.
The 6WL pattern is relatively easy to clean because the drop contours are smooth and large enough to wipe without trapping debris in tight crevices. For high-touch areas, an anti-fingerprint coating can be applied. Standard maintenance involves wiping with a soft cloth and mild detergent — avoid abrasive cleaners that could scratch the surface finish.
6WL sheets can be PVD-coated in a wide range of colors including gold, rose gold, champagne gold, bronze, black, blue, and green. PVD (Physical Vapor Deposition) coating bonds at the atomic level, providing color durability that far exceeds traditional paint or plating. PVD-coated 6WL panels retain the full embossed texture while adding rich color dimension.
Standard 6WL rain drop sheets in common sizes and grades (304, 0.8–1.0mm) typically have a 7–10 day production lead time. Custom specifications — non-standard sizes, special PVD colors, or 316L grade — may require 15–20 days. Ferosteel maintains stock of popular configurations for faster delivery on urgent projects.
Contact Ferosteel for free samples and quotation. Whether you need standard 6WL rain drop panels for an elevator project or custom PVD-colored rigidized sheets for a hospitality interior, our team can provide material samples, technical specifications, and competitive pricing. Reach out today to discuss your project requirements.
