Embossed Stainless Steel Sheet: Patterns and Specifications

Oct 22, 2026

By Ferosteel Technical Team | Reviewed by Engineering Dept. | Last updated: October 2026

Quick Answer: Embossed stainless steel sheet (also called stamped or textured sheet) is a stainless plate with a three-dimensional pattern pressed into the surface by high-pressure stamping or rolling. Available in 201/304/316/430 grades, 0.3–1.5 mm thickness and standard 4×8 ft sizes, with patterns including diamond, vertical line, ripple, moon rock and antique square. It is specified for elevator interiors, feature walls, ceilings and doors where a textured, fingerprint-resistant metal surface is needed.

What Is Embossed Stainless Steel Sheet?

Embossed stainless steel gets its texture from mechanical deformation, not coating or etching. The sheet is pressed between a patterned roller and a flat roller (continuous rolling) or struck by a stamping die (discrete stamping), which pushes a raised pattern into the metal. The pattern is permanent — it cannot wear off, peel or be cleaned away.

The result is a surface with real depth: raised ridges and grooves that catch light at different angles, hide fingerprints and minor scratches, and add rigidity to thin sheet.

Two terms are often used interchangeably:

Embossed — pattern formed by rolling or pressing (diamond, line, square, bead)

Stamped — pattern formed by die stamping, often deeper or more complex (vertical line, ripple, custom logos)

**

Figure 1: Vertical line embossed sheet from Ferosteel — continuous fine grooves give a refined three-dimensional effect.

Common Patterns and What They Look Like

Pattern

Appearance

Typical Use

Diamond

Raised diamond grid, classic anti-slip look

Floor plates, kick plates, industrial-decor

Vertical line

Fine continuous vertical grooves

Elevators, feature walls, doors

Ripple / wave

Soft flowing wave relief

Walls, ceilings, water-themed spaces

Moon rock

Irregular pitted craters like lunar surface

Luxury lobbies, feature columns

Antique square

Aged, recessed square grid

Vintage-style walls, bars, restaurants

Snake skin

Scale-like overlapping pattern

Accent walls, furniture fronts

Round bead / 5-bar

Dense small beads or five parallel bars

Heat shields, appliance panels, backsplashes

Custom logo

Die-stamped brand or motif

Elevator doors, corporate entrances

Pattern depth, spacing and scale are all customizable. Order a physical sample — a pattern that looks elegant in a photo can read too busy or too faint at full wall scale.

**

Figure 2: Diamond embossed sheet — the classic raised-diamond pattern, also used where a non-slip surface is needed.

Specifications

Parameter

Standard Options

Notes

Base grade

201 / 304 / 316 / 430

304 standard interior; 316L humid/coastal; 430 budget

Thickness

0.3 – 1.5 mm

Decorative: 0.4 – 1.2 mm; some patterns to 1.5 mm

Standard sizes

1000×2000, 1219×2438, 1219×3048, 1500×3000 mm

Cut-to-size available

Pattern

Diamond / Vertical line / Ripple / Moon rock / Square / Custom

Depth customizable

Finish on pattern

2B, BA, No. 4 brushed, mirror, PVD color

PVD: gold, black, bronze, champagne

Standards

ASTM A240 / AISI / JIS / GB

Mill certificate available

MOQ

30 sheets per pattern

Mixed patterns negotiable

Thickness by Application

Use Case

Recommended Thickness

Wall cladding, ceiling panels

0.5 – 0.8 mm

Elevator interiors, door panels

0.5 – 0.8 mm

Feature walls, column wraps

0.8 – 1.0 mm

Door skins, furniture faces

0.8 – 1.2 mm

Floor plates, kick plates, ramps

1.2 – 1.5 mm (diamond only)

Heat shields, appliance panels

0.1 – 0.15 mm (ultra-thin)

Weight Calculation

Stainless steel density: 7.93 g/cm³. Embossing slightly increases surface area but the weight change is negligible for quoting.

Example: A 304 vertical-line embossed sheet, 1219 × 2438 mm, 0.8 mm thick.

Weight = 1.219 m × 2.438 m × 0.0008 m × 7930 kg/m³ = ≈ 18.8 kg per sheet

Rule of thumb: weight (kg) ≈ length(m) × width(m) × thickness(mm) × 7.93.

Embossed vs. Etched vs. Flat: Which Surface?

Factor

Embossed

Etched

Flat (2B / Brushed)

Texture

Raised, 3D, tactile

Recessed, pattern cut in

Smooth, no texture

Process

Mechanical pressing

Chemical etching

Rolling/brushing

Depth

0.1 – 1.0 mm raised

0.02 – 0.15 mm recessed

None

Fingerprint hiding

Excellent

Good

Poor (mirror) / Good (brushed)

Scratch hiding

Excellent

Good

Depends on finish

Rigidity

Adds stiffness to thin sheet

No effect

No effect

Cost

Moderate

Higher (pattern tooling)

Lowest

Best for

Walls, elevators, doors, floors

Luxury logos, art panels

General cladding

Choose embossed when you want visible 3D texture and better durability per mm of thickness; choose etched for fine, detailed motifs; choose flat when the metal should read as a smooth surface.

Where Embossed Stainless Steel Is Used

Elevator Interiors

Vertical-line and fine-pattern embossed sheets are standard in elevator cabs. The texture hides fingerprints from daily use far better than mirror, while the raised lines add a premium architectural feel under LED lighting.

**

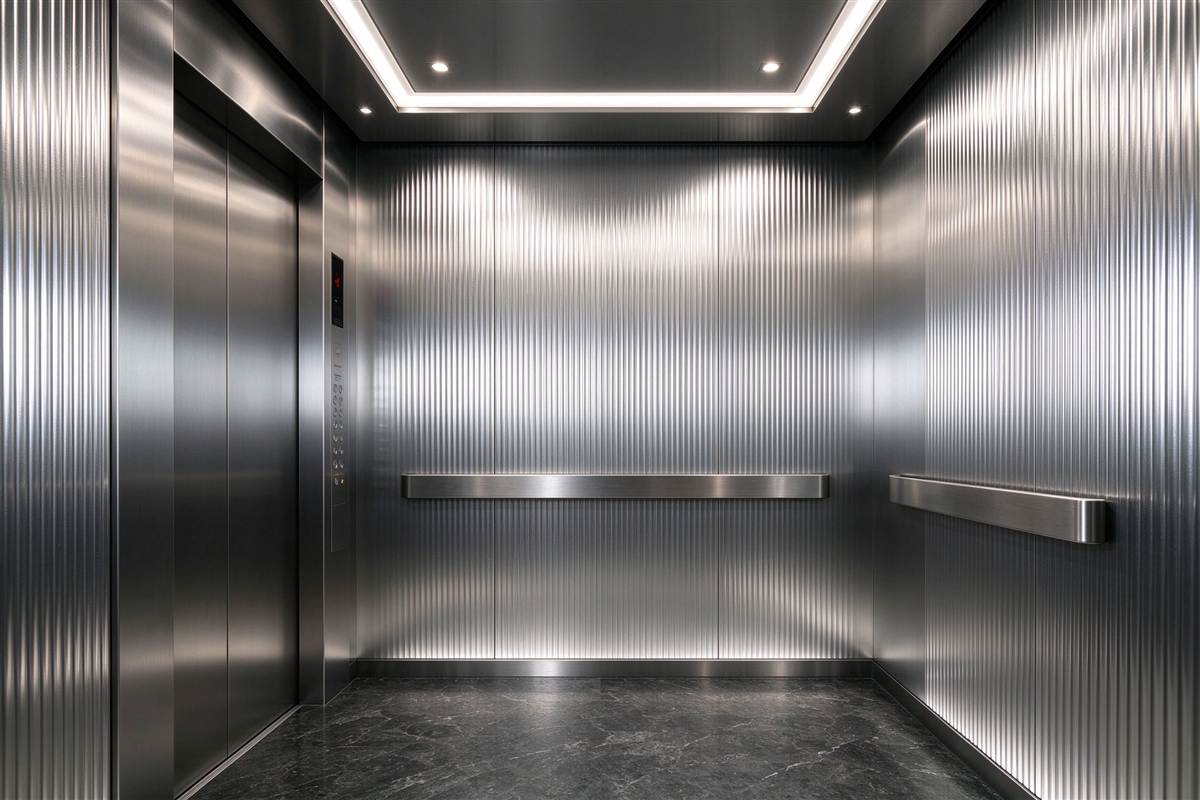

Figure 3: Vertical-line embossed panels in an elevator — the raised grooves catch light and hide fingerprints, a standard upgrade from flat brushed.

Feature Walls and Lobby Cladding

A full wall of vertical-line or moon-rock embossed panels creates depth without the glare of mirror. Warm spotlights grazing the surface highlight the relief — light and shadow become part of the design.

Doors and Door Frames

Embossed sheets add tactile interest to lift doors, entry doors and interior door skins, and hide the handling marks that plain stainless shows quickly.

Ceilings and Column Wraps

Light-ripple and fine-line patterns on ceilings soften reflections and give a textured, seamless look. Column wraps in embossed sheet disguise dents better than flat metal.

Retail, Hospitality and Residential Accents

Bars, restaurants and hotel suites use antique-square, snake-skin or custom-stamped panels as accent walls and furniture fronts, often in PVD bronze or gold over the embossed texture.

**

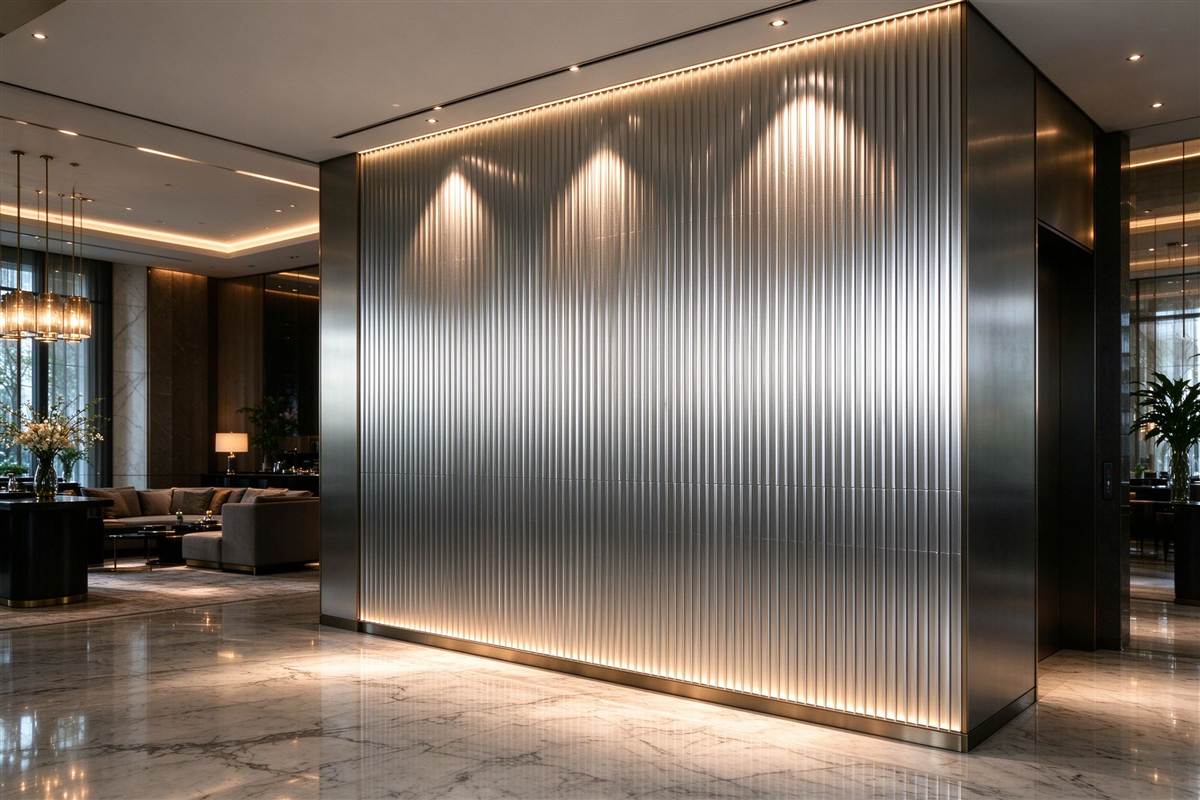

Figure 4: Embossed wall panels in a lobby — linear light grazes the raised texture, making the relief the design centerpiece.

Limitations and Care

Pattern direction matters. Vertical-line embossed panels have a visible direction. Adjacent panels must be installed with grain running the same way, or the wall looks patchy.

Not all patterns work on all gauges. Deep patterns need thicker sheet; very fine patterns can disappear on thin sheet under forming pressure. Confirm pattern-gauge compatibility with the mill.

PVD color over embossing is best done after forming. Colored embossed sheet is PVD-coated after pressing; the color sits on the raised surface too. Check coverage on deep patterns.

Welding embossed joints is tricky. Raised patterns make flush welded seams hard to hide. Use concealed joints, trim profiles or shadow gaps instead of visible welds.

Cleaning — wipe with mild soap and water; the raised pattern can trap dust in grooves, so a soft brush or microfiber works better than plain wiping.

Pricing and Lead Time

Cost Factors

Grade: 201 entry, 304 standard, 316/316L premium, 430 budget

Thickness: 0.5–0.8 mm is the decorative sweet spot

Pattern: standard roller patterns (diamond, line) are cheapest; custom die-stamped patterns carry tooling cost

Finish: 2B base lowest; PVD color adds 20–40%

Volume: MOQ 30 sheets; larger orders lower unit price

Lead Time

Stocked standard patterns (line, diamond): 7–15 working days

Custom patterns / PVD color: 15–30 working days

Cut-to-size: add 3–5 days

Frequently Asked Questions

Q: What is the difference between embossed and stamped stainless steel sheet?

Embossed is formed by continuous rolling between patterned rollers (diamond, square, bead patterns). Stamped is formed by discrete die stamping and can produce deeper or more complex designs (vertical line, ripple, custom logos). Ferosteel supplies both.

Q: Which embossed pattern is best for elevator interiors?

Vertical-line or fine diamond patterns are the most common. They hide fingerprints well, catch light attractively and don't overwhelm the small cabin space. Avoid heavy patterns like snake skin or deep moon rock in elevators — they can look busy.

Q: Can embossed stainless steel be colored?

Yes. PVD vacuum coating is applied after embossing, in gold, black, bronze, champagne and other tones. The color covers both raised and recessed areas of the pattern.

Q: Is embossed stainless steel anti-slip?

Diamond and bead patterns provide some slip resistance and are used for floor plates, ramps and kick plates. For certified anti-slip flooring, confirm the pattern and testing standard with the supplier.

Q: What thickness should I use for wall panels?

0.5–0.8 mm for standard wall cladding and elevator panels; 0.8–1.0 mm for larger feature walls and column wraps. The embossing adds stiffness, so slightly thinner sheet can be used than for flat mirror panels.

Q: Can embossed stainless steel be used outdoors?

Yes, in 304 for covered outdoor areas and 316L for exposed coastal or salt-air environments. Ensure the edge treatment and fixing system are suitable for outdoor exposure.

Request an Embossed Sheet Quote

Tell us the pattern, grade and size, and we'll send samples and a tailored quote.

To speed up your quote, include:

Field

Example

Grade

304 / 316L / 201 / 430

Thickness

0.5 mm / 0.8 mm / 1.0 mm / 1.2 mm

Size

1219×2438 mm, or custom cut

Pattern

Vertical line / Diamond / Ripple / Moon rock / Custom

Finish

2B / Brushed / Mirror / PVD color

Color (if PVD)

Gold / Black / Bronze / Champagne

Quantity

30 sheets / by m²

Destination

Port / city for shipping estimate

Contact Ferosteel → Request Embossed Samples & Quote

Ferosteel manufactures embossed and stamped stainless steel sheets in Foshan, China — diamond, line, ripple, moon rock and custom patterns in 201/304/316/430, with optional PVD color — supplying elevator companies, hotel fit-outs, door makers and furniture manufacturers across Southeast Asia, the Middle East and Europe.

Related reads: mirror stainless steel sheet for smooth reflective finishes, or antique finish stainless steel sheets for aged colored surfaces.
