As global architecture evolves toward more expressive, sustainable, and high-performance building envelopes, the limitations of traditional curtain wall materials are becoming increasingly apparent. Aluminum curtain walls, while cost-effective, struggle with long-term durability in coastal and high-corrosion environments, often requiring extensive maintenance within 5-8 years of installation. Glass-dominant facades, though visually striking, present challenges in thermal performance, structural rigidity, and acoustic insulation. According to industry research, the global stainless steel curtain wall market is projected to grow from USD 13.2 billion in 2026 to USD 17.8 billion by 2032, at a CAGR of 5.1%, driven by accelerating urbanization, building renewal cycles, and tightening green building standards.
For B2B buyers — including façade contractors, architectural firms, building developers, and procurement managers — the core challenge lies in selecting a stainless steel curtain wall material that balances aesthetic ambition with structural integrity, lifecycle cost, and supply chain reliability. The wrong choice can lead to premature corrosion, color fading, panel deformation, and costly retrofit projects. This guide addresses the growing demand for stainless steel curtain wall systems as a superior alternative, offering detailed technical specifications, procurement criteria, and application insights for commercial and institutional building projects.
A stainless steel curtain wall system is a non-structural, lightweight building envelope that uses metal panels, frames, or composite assemblies to clad the exterior of a building. Unlike traditional load-bearing walls, curtain wall systems transfer wind loads and dead loads to the building structure through anchored connections, while providing thermal insulation, weather resistance, and architectural expression.
Stainless steel curtain wall systems are available in several configurations:
Unitized Panel Systems: Pre-assembled panel units (typically 1.2m × 3.0m or custom dimensions) incorporating stainless steel face sheets, insulation core, and backing. These factory-assembled stainless steel curtain wall modules are crane-lifted and anchored to the building slab edge, significantly reducing on-site installation time and quality variability.
Stick-Built Systems: Stainless steel mullions and transoms are assembled on-site, with infill panels installed sequentially. This approach offers greater design flexibility for complex geometries but requires more skilled labor and longer installation periods.
Cassette Panel Systems: Larger-format stainless steel cassettes (up to 1.5m × 4.0m) with folded edges for rigidity, installed onto a concealed subframe. These systems are favored for their clean lines, minimal visible joints, and excellent flatness.
Metal Composite Panel Systems: Stainless steel skins bonded to a polyethylene or mineral core, offering a lightweight solution with excellent flatness. Available in multiple surface finishes including mirror, brushed, and PVD-colored.
The key material grades for facade applications include 304 stainless steel (standard atmospheric environments) and 316L stainless steel (coastal and high-corrosion environments). Both grades offer the corrosion resistance, fire safety (Class A1 per EN 13501-1), and 100% recyclability that modern building codes demand.
Ferosteel (ferosteel.com), headquartered in Foshan, China — the heart of the country's stainless steel industry — has been a dedicated supplier of decorative stainless steel materials and metal products since 2017. With over 15 years of industry experience, Ferosteel has established a comprehensive surface treatment and metal processing system that directly serves the needs of stainless steel curtain wall and facade projects worldwide.

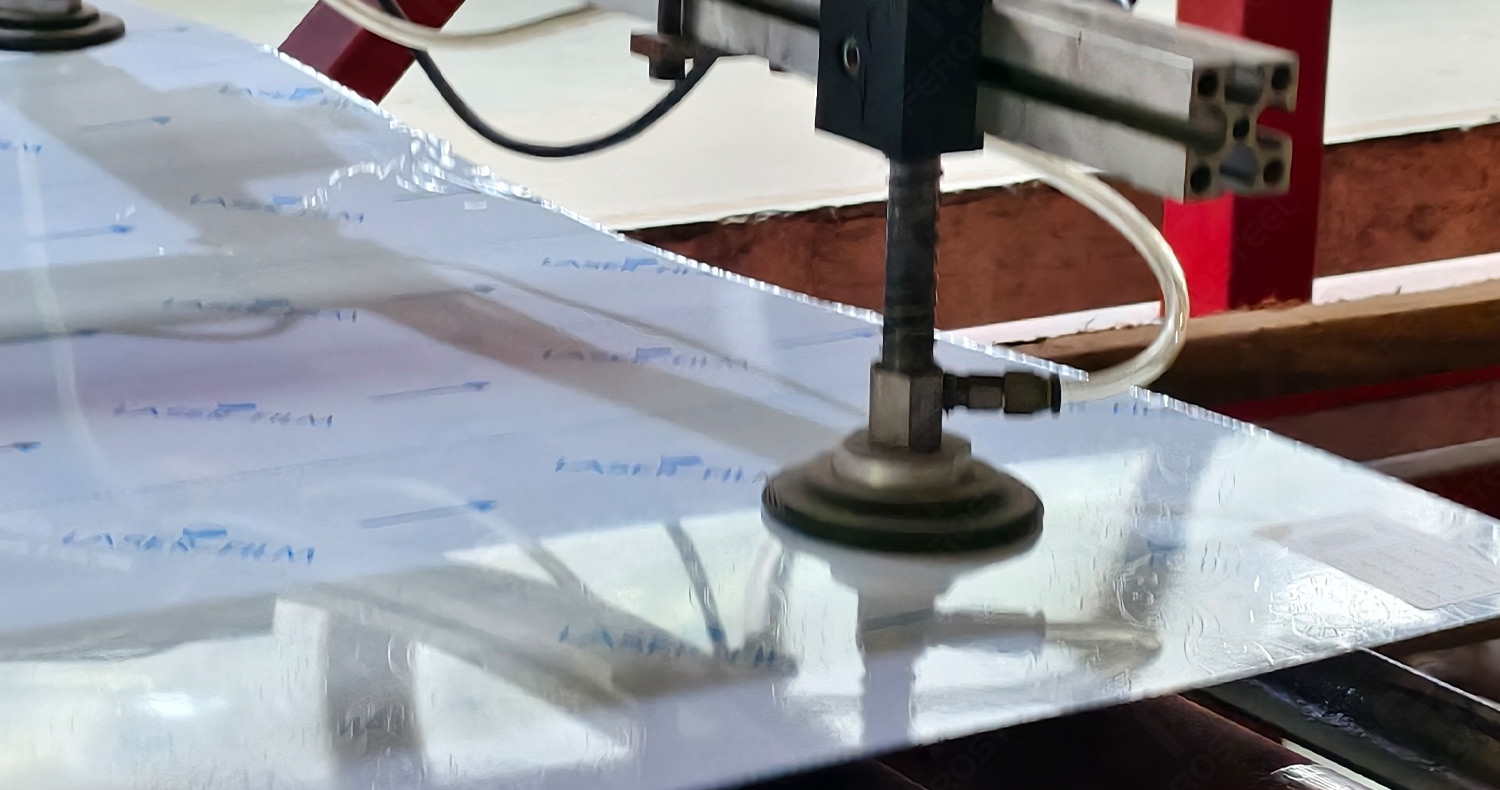

Surface Treatment Capabilities: Ferosteel's processing facility covers slitting, cutting, sanding, brushing, 8K mirror finishing, PVD vacuum coating, sandblasting, etching, and deep-processing capabilities including laser cutting, bending, welding, and polishing. This vertically integrated capability means that facade panels can be produced from raw material through finished decorative panel under one roof, ensuring color consistency, dimensional accuracy, and timely delivery.
Material Grades & Specifications: Ferosteel supplies facade panels in grades 201, 304, 316L, and 430, with thicknesses ranging from 0.4mm to 2.0mm (standard) and up to 3.0mm for custom structural applications. Standard panel widths of 1000mm, 1220mm, and 1500mm, and lengths of 2000mm, 2438mm, and 3048mm are available, with full customization options for non-standard dimensions.
Quality Assurance: Ferosteel operates under a strict ISO 9001:2015 quality management system, with SGS international certification. Every batch undergoes 100% pre-shipment inspection covering material composition, surface finish uniformity, dimensional tolerance, and color consistency. With over 250 certificates and honors, Ferosteel ensures that every facade panel meets export-grade quality standards. For related product specifications, explore our water ripple stainless steel sheet options.
Global Experience: Serving over 700 customers across Southeast Asia, the Middle East, South America, and beyond, Ferosteel brings proven international project experience to every curtain wall supply partnership. The company offers multilingual support, flexible packaging, and professional export documentation to streamline the procurement process for global buyers.
Stainless steel curtain wall systems are increasingly specified across a wide range of building types and environments:
Commercial Office Towers: High-rise office buildings demand stainless steel curtain wall systems that combine visual prestige with long-term durability. Stainless steel panels in mirror, brushed, or PVD-colored finishes create a striking corporate identity while withstanding decades of wind load, thermal cycling, and urban pollution. The 304 and 316L grades ensure minimal maintenance and sustained aesthetic performance over the building's lifecycle.
Hotel & Hospitality Projects: Luxury hotels and resorts utilize stainless steel exterior cladding systems to create distinctive architectural statements. PVD-colored panels in gold, bronze, rose gold, and champagne tones offer warm, sophisticated finishes that complement glass and stone elements. The water ripple and embossed texture options add depth and visual interest to facade surfaces, particularly effective in lobby entrance features and exterior wall applications.
Transportation Hubs: Airports, railway stations, and metro terminals are high-traffic environments where material durability, fire safety, and ease of maintenance are paramount. Stainless steel curtain wall systems meet Class A1 fire rating requirements and resist vandalism, graffiti, and corrosion from de-icing salts and atmospheric pollutants. The material's 100% recyclability also supports LEED and BREEAM certification goals.
Cultural & Civic Buildings: Museums, exhibition centers, and government buildings increasingly specify stainless steel facade systems for their combination of sculptural formability and timeless aesthetics. Complex curved geometries, perforated panels for light control, and integrated LED façade systems are all achievable with stainless steel's excellent formability and weldability.
Retail & Commercial Plazas: Shopping malls and commercial complexes use stainless steel facade panels to create visually compelling entry points and anchor store facades. Mirror-finished panels create dynamic reflections of the surrounding environment, while PVD-colored panels reinforce brand identity. The material's low maintenance requirements are particularly valued in high-traffic retail environments.
Superior Durability & Corrosion Resistance: Stainless steel curtain wall panels offer exceptional resistance to corrosion, UV degradation, and atmospheric pollutants. In coastal environments, 316L stainless steel provides salt-spray resistance that far exceeds aluminum or coated steel alternatives, with corrosion rates below 0.01mm/year in ASTM B117 3000-hour salt spray testing. This translates to a service life of 50+ years with minimal maintenance.
Fire Safety Compliance: Stainless steel is non-combustible, achieving Class A1 fire rating under EN 13501-1. In the event of fire, stainless steel curtain wall systems do not contribute to flame spread, smoke production, or toxic gas emission — critical for high-rise and public building applications where fire safety regulations are increasingly stringent.
Design Flexibility: Stainless steel can be formed into complex geometries including curved panels, folded cassettes, perforated screens, and custom-embossed patterns. Combined with 10+ surface treatment options (mirror, hairline, satin, sandblasted, etched, PVD-colored, embossed, water ripple, and more), architects have unprecedented creative freedom to realize their design vision.
Lifecycle Cost Efficiency: While the initial material cost of stainless steel curtain wall panels may be higher than aluminum or painted steel alternatives, the total lifecycle cost is significantly lower. The combination of 50+ year service life, near-zero maintenance requirements, and 100% recyclability at end of life makes stainless steel the most cost-effective choice for permanent building envelopes.
Sustainability & Recyclability: Stainless steel is 100% recyclable without loss of quality. The high recycled content of stainless steel (typically 60-80% for 304 grade) and its infinite recyclability contribute to LEED, BREEAM, and other green building certification points. The material's durability also means fewer replacement cycles, reducing construction waste over the building's lifetime.
PVD Color Stability: Ferosteel's PVD (Physical Vapor Deposition) coating technology produces colored stainless steel panels with exceptional color consistency and UV stability. The PVD layer is not a paint or coating that can peel or chip — it is a molecular-level bonding process that creates a permanent colored surface resistant to fading, even in direct sunlight exposure.
When sourcing stainless steel curtain wall panels for your project, the following factors should be systematically evaluated:
1. Material Grade Selection - 304 Stainless Steel: Suitable for most urban and suburban environments. Standard choice for interior curtain walls and exterior applications in moderate climates. - 316L Stainless Steel: Recommended for coastal areas, high-humidity environments, and buildings near industrial zones. The molybdenum content provides enhanced corrosion resistance against chlorides and acids. - Customization: Ferosteel supplies all grades with full material traceability and mill test certificates.
2. Panel Dimensions & Tolerances - Standard sheets: 1000/1220/1500mm × 2000/2438/3048mm - Thickness range: 0.4-2.0mm (standard), up to 3.0mm (custom) - Tolerance: ±5% per industry standards - Custom sizes available for project-specific requirements — Ferosteel supports non-standard dimensions with quick turnaround
3. Surface Finish Selection - Mirror (8K): High reflectivity for dramatic visual impact - Brushed/Hairline: Directional grain finish for contemporary elegance - PVD Colored: 20+ standard colors (gold, rose gold, bronze, champagne, black, gunmetal, blue, etc.) - Embossed/Textured: Water ripple, leather, linen, honeycomb, willow patterns - Etched: Custom patterns and logos - Sandblasted: Matte, uniform surface for diffuse light reflection
4. Quantity & Lead Time - Standard decorative sheets: 15 sheets per type minimum - Custom products: 1 piece MOQ for custom fabrication - Standard production lead time: 7-10 days for decorative sheets, 15-20 days for custom trims - Custom panel fabrication: 25-30 days depending on complexity - Ferosteel's integrated supply chain ensures reliable delivery with standard orders shipping within 15-25 days
5. Certification & Quality Assurance - Verify ISO 9001:2015 certification - Request SGS or equivalent third-party inspection reports - Confirm material grade certificates (mill test certificates) - Ask about pre-shipment inspection procedures (Ferosteel: 100% pre-shipment inspection) - Check warranty terms and after-sales support coverage
6. Logistics & Packaging - Professional export packaging: PVC film + waterproof paper + export wooden crate - Custom packaging for fragile or high-value finishes - FOB/CIF terms available from main Chinese ports - Ferosteel provides full export documentation including commercial invoice, packing list, bill of lading, and certificate of origin
Q1: What is the difference between a stainless steel facade system and a traditional glass curtain wall? A stainless steel cladding system uses metal panels as the primary facade material instead of glass. While glass curtain walls offer transparency and natural light penetration, metal facade systems provide superior structural strength, corrosion resistance, fire safety, and design versatility. Many modern projects combine both: stainless steel panels for spandrel areas, column covers, and feature elements, with vision glass for windows. Metal-based facade systems also offer a significantly wider range of surface finishes and colors compared to glass.
Q2: Can stainless steel cladding panels be used in coastal environments? Yes. For coastal environments, 316L stainless steel is the recommended grade due to its enhanced resistance to chloride-induced corrosion. Ferosteel supplies 316L facade panels that have been tested to ASTM B117 3000-hour salt spray standards with corrosion rates below 0.01mm/year. The combination of 316L material and proper surface treatment ensures long-term performance even in marine atmospheres.
Q3: How do PVD-colored stainless steel panels perform in outdoor curtain wall applications? PVD (Physical Vapor Deposition) coating creates a molecular-level bond on the stainless steel surface, making it highly resistant to UV fading, weather exposure, and physical wear. PVD-colored panels from Ferosteel maintain color stability in direct sunlight and outdoor conditions for decades. The coating does not peel, chip, or delaminate because it is metallurgically bonded to the substrate rather than applied as a paint layer.
Q4: What is the typical lead time for custom stainless steel facade panels? Standard decorative facade panels typically ship within 7-10 days from order confirmation. Custom panels requiring specialized fabrication, non-standard dimensions, or unique surface finishes require 15-25 days. For complex custom products with integrated features (curved panels, perforated patterns, full assembly), lead time extends to 25-30 days. Ferosteel's integrated production facility in Foshan allows efficient management of both standard and custom orders.
Q5: Can I order samples before placing a bulk curtain wall panel order? Yes, Ferosteel provides product samples for material grade, surface finish, and color verification. Contact our sales team at [email protected] or call +86 18024913898 to request samples. Standard samples are available with express shipping, and we can also coordinate larger sample panels for project mock-up evaluation.
Q6: How does the cost of stainless steel facade panels compare to aluminum alternatives? The initial material cost of stainless steel facade panels is typically 1.5-2.5 times higher than painted aluminum panels. However, the total lifecycle cost is often lower due to stainless steel's superior durability (50+ year service life vs. 15-20 years for painted aluminum), near-zero maintenance requirements, and elimination of recoating or replacement costs. For permanent building envelopes where long-term value is a priority, stainless steel is the most cost-effective choice.
Q7: What surface finishes are available for stainless steel facade panels? Ferosteel offers a comprehensive range of surface finishes for curtain wall applications: mirror (8K), brushed/hairline, satin, No.4 finish, sandblasted, etched (custom patterns), PVD-colored (20+ colors including gold, rose gold, bronze, champagne, black, gunmetal, blue, and custom RAL matching), embossed (water ripple, leather, linen, honeycomb, willow), and antique/bronze patina effects. Multiple finishes can be combined for customized design solutions.
Ready to specify stainless steel facade panels for your next building project? Contact Ferosteel today for technical consultation, pricing, and sample requests.
Email: [email protected] Phone: +86 18024913898 Website: https://www.ferosteel.com/
For more information on our architectural stainless steel solutions, explore our decorative stainless steel panels and PVD colored stainless steel sheets. For elevator and interior applications, see our stainless steel elevator panels and learn about stainless steel cladding solutions for architectural projects.
