Water Ripple Stainless Steel Ceiling Panels: Thickness and Installation

Quick Answer: Water ripple stainless steel ceiling panels are embossed metal sheets installed on interior ceilings to create a reflective, wave-like light effect. Most commercial projects use 304 grade at 0.4–0.6 mm thickness, either glued to a plasterboard substrate or clipped onto a suspension grid. Small-wave mirror panels work best for ceilings viewed from 2–3 m. Plan for 10–15 kg/m² load on the supporting structure and leave thermal expansion gaps at edges.

• Light amplification: Mirror ripple reflects downlight across the room, reducing the number of fixtures needed.

• Lightweight: At 0.4–0.6 mm thickness, panels weigh only 3–5 kg/m² — far lighter than solid metal ceiling systems.

• Durability: Stainless steel does not sag, discolor, or collect dust like acoustic tiles; wipe-clean in place.

**

Weight = thickness(mm) × density = 0.0005 m × 7930 kg/m³ = 3.97 kg/m²

• Glued over plasterboard: 3.97 kg/m² + 8 kg/m² (12 mm board) = ~12 kg/m² total

• Suspended grid only: 3.97 kg/m² + 2 kg/m² (grid) = ~6 kg/m² total

1. Install 9–12 mm moisture-resistant plasterboard or marine MDF on the existing ceiling joists. The surface must be perfectly flat — any unevenness will show through the mirror ripple.

2. Cut ripple panels to size using aviation snips or a guillotine (do not use an angle grinder — heat discolors PVD coating).

3. Apply a neutral-cure structural adhesive (silicone or polyurethane) in dabs around the perimeter and center of the panel.

4. Press firmly into place, use low-tack tape or temporary props until the adhesive cures (24 hours).

5. Leave a 2–3 mm gap at wall edges and between panels for thermal expansion. Cover joints with stainless trim or decorative aluminum U-channel.

1. Install the suspension grid from the concrete slab using hanger wires at 1200 mm spacing.

2. Cut ripple panels to fit the grid module (usually 595×595 mm or 595×1195 mm).

3. Panels lay directly into the T-bar grid. No adhesive needed.

4. For a seamless look, specify a hidden grid (concealed T-bar) where clips hold panels from behind.

1. Install light-gauge metal furring channels (0.5 mm galvanized) across the ceiling at 300–400 mm spacing, suspended from the slab.

2. Use stainless steel hidden clips (J-hooks or wedge clips) that grip the edge of the ripple panel.

3. Panels click into place; joints are nearly invisible from below.

4. This method requires factory-edge preparation — order panels with pre-punched edges if using this system.

**

• Small wave (0.5–1.0 mm depth) — the default for ceilings. From 2–3 m below, the fine ripple creates a shimmering water-like effect without looking busy.

• Medium wave (1.0–1.5 mm) — works in double-height lobbies where viewers look up from further away, or in areas with dramatic accent lighting.

• Large wave (1.5–2.0 mm) — too dramatic for most ceilings. Looks uneven and exaggerated from below; reserve for feature walls.

• Mirror 8K silver — the most light-reflective choice, amplifies downlight output.

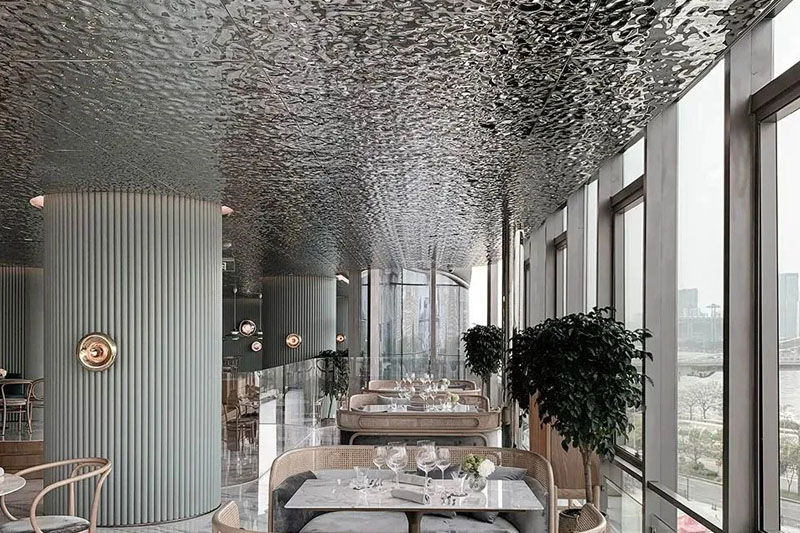

• Mirror gold / champagne PVD — warm luxury look for hotels and high-end restaurants. PVD coating withstands interior humidity and does not tarnish.

• Hairline / brushed ripple — softer, less reflective; hides installation imperfections better than mirror.

• Black or dark PVD — moody, modern effect for bars, nightclubs and retail feature ceilings.

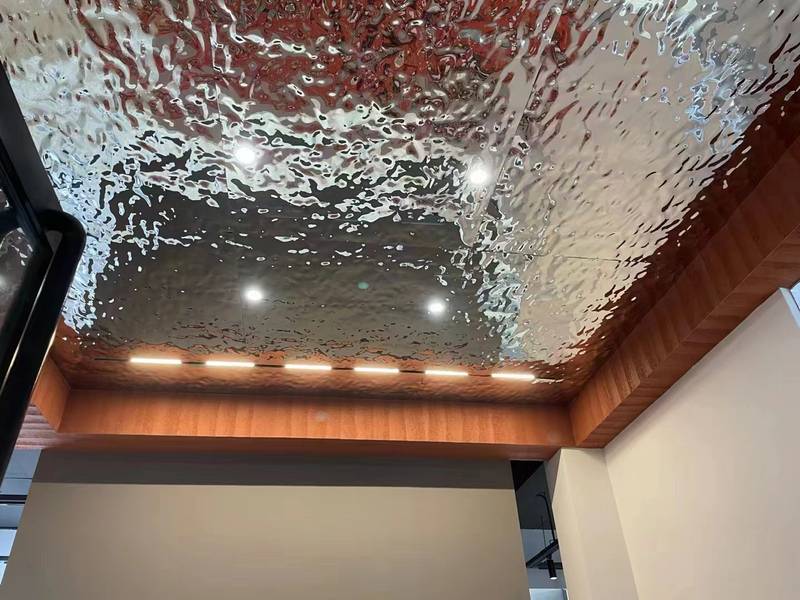

• Recessed downlights spaced 600–800 mm apart — each one creates a dynamic reflection pattern.

• Cove lighting around the perimeter — grazes the ripple and creates a flowing light band.

• Avoid bare exposed bulbs — direct glare off mirror surfaces can be uncomfortable.

1. No expansion gaps: Thin stainless panels expand and contract with room temperature. Panels rigidly fixed edge-to-edge will buckle or pop. Always leave 2–3 mm gaps.

2. Unflat backing: Mirror ripple magnifies every imperfection in the substrate. A wavy plasterboard ceiling becomes a wavy mirror ceiling. Check flatness with a 2 m straightedge before installing.

3. Wrong thickness on large spans: 0.4 mm panels on a grid wider than 600 mm will sag or vibrate. Increase thickness to 0.6 mm or narrow the grid spacing.

4. Angle grinder cutting: Heat from grinding discolors PVD coatings and creates sharp, dangerous edges. Use snips, guillotines or plasma cutters with proper fixturing.

5. Peeling film too late: The protective PVC film should be peeled off within 48 hours of installation. Sunlight or heat locks the adhesive onto the panel surface.

6. Ignoring plenum access: If the ceiling covers electrical, HVAC or sprinkler systems, use lay-in panels — not glued — so trades can access the space later.

• Grade: 201 (budget), 304 (standard), 316L (humid/coastal)

• Thickness: 0.4–0.6 mm is the ceiling sweet spot

• PVD color: adds 30–60% over bare mirror

• Pattern: small wave standard; deep or custom patterns cost more

• Cut-to-size: pre-cut panels save on-site labor but cost more per m²

• Rectangular rooms, standard grid: ~5–8%

• Irregular shapes, cuts around vents/lights: ~10–15%

• First-time installation crew: add 5%

• Standard silver mirror small-wave panels: 3–7 days from stock

• PVD colors (gold, black, etc.): 15–25 working days

• Cut-to-size panels: add 3–5 days

**
