Water Ripple Stainless Steel Sheet: Specifications and Buying Guide

Quick Answer:

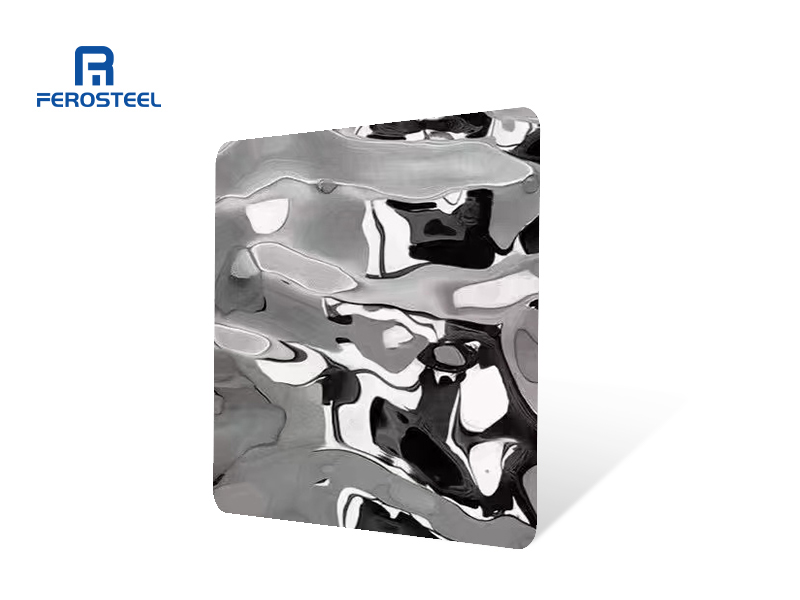

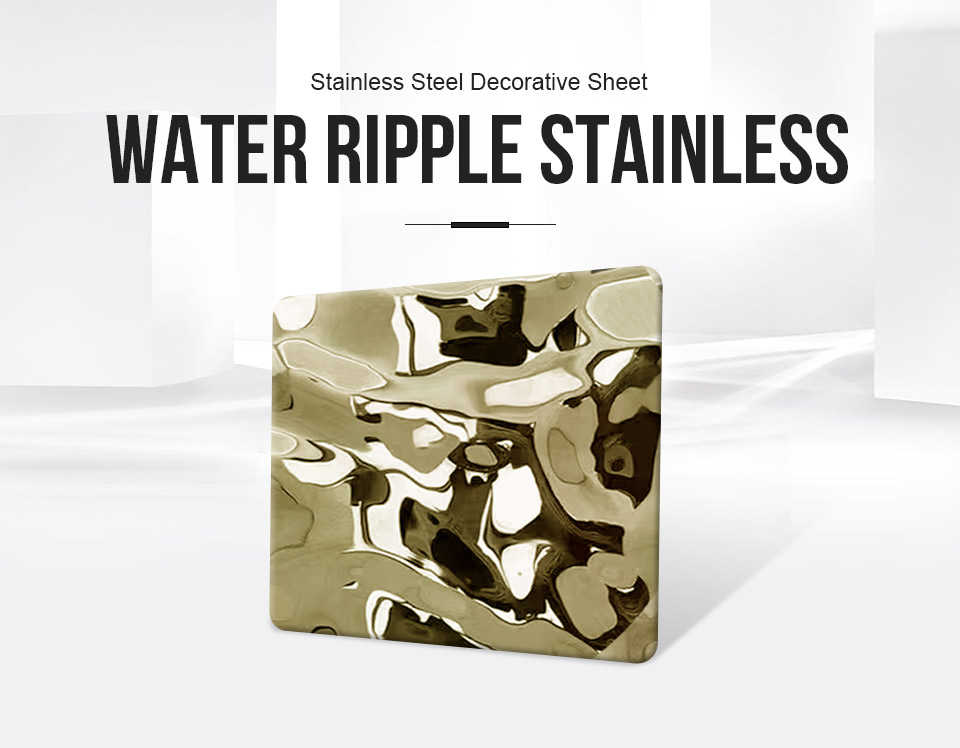

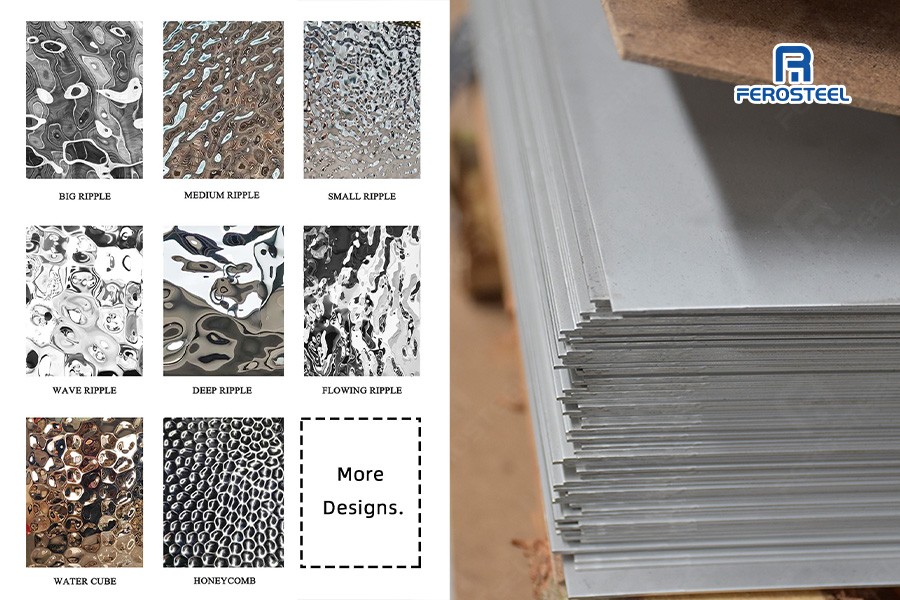

Water ripple stainless steel sheet is an embossed decorative panel (typically 0.3–3.0 mm thick, in 201/304/316 grades) stamped with continuous wave patterns for ceiling, wall cladding and feature wall applications. Most commercial projects use 304 grade at 0.6–0.8 mm thickness, 4×8 ft size, in mirror or PVD gold finish. Order samples first, match grade to environment, and confirm pattern scale by viewing distance.

**

• 0.3–0.5 mm — Lightweight, glued to substrate; ceilings, column wraps. Dents easily.

• 0.6–0.8 mm — The sweet spot for wall cladding and elevator cabs.

• 1.0–1.5 mm — Durable choice for reception desks and high-traffic feature walls.

• 2.0–3.0 mm — Rare for ripple; used for custom countertops or furniture.

• 1000 × 2000 mm

• 1219 × 2438 mm (4 ft × 8 ft) — most common export size

• 1219 × 3048 mm (4 ft × 10 ft)

**

1. Volume = 1.219 m × 2.438 m × 0.0008 m = 0.002376 m³

2. Weight = 0.002376 m³ × 7930 kg/m³ = ≈ 18.85 kg per sheet

3. For a 50-sheet order: 18.85 × 50 = ≈ 942.5 kg (add ~10% for packaging)

• Hotel & restaurant interiors — lobbies, bar fronts, buffet backgrounds, private dining rooms. Gold PVD mirror ripple behind a reception desk is a signature look in upscale hospitality.

• Ceiling treatments — hung from a grid or fixed to plasterboard; small-wave mirror panels refract downlight into dynamic ceiling glow.

• Elevator cabs — thin 0.5–0.6 mm panels fit easily; textured surface hides minor dings better than flat mirror.

• Feature walls & columns — breaks up large flat surfaces in shopping malls and office lobbies; reflective texture makes narrow spaces feel brighter.

• Retail showrooms — boutique fitting rooms, jewelry displays, car showroom accent walls.

• Residential luxury — kitchen island backgrounds, TV feature walls, bathroom accents (use 304 + anti-fingerprint).

**

• Outdoor in corrosive environments without 316L — 201 or 304 will rust in coastal or pool-adjacent exposure.

• Heavy abrasion zones — PVD coatings scratch under wheeled traffic; avoid on floors or kickplates.

• Low-budget residential renos — material + installation cost is 3–5× flat paint; use as an accent only.

• Large spans without backing — panels over 2 m tall will oil-can on an open frame; thicken or add support.

1. Thermal expansion: Thin ripple panels expand and contract with temperature. Use floating clips or leave 2–3 mm gaps at edges; do not rigidly screw every corner.

2. PVD coating wear: PVD layers are durable but not scratch-proof. Avoid abrasive pads, steel wool, or bleach-based cleaners. Clean with mild stainless cleaner and microfiber, wiping along the ripple direction.

3. Protective film: The PVC film on both sides must stay on until installation is complete. Peel it off right after installation — leaving it on too long can make adhesive residue hard to remove.

4. Welding: Ripple pattern cannot be field-welded without destroying the embossed surface. Plan all joints as mechanical or adhesive, not welded.

5. Weight on ceilings: Confirm the supporting structure can carry ~10–15 kg/m² plus fixture loads. Thin panels are light but a full ceiling still adds up.

1. Grade — 201 cheapest, 316L premium

2. Thickness — more raw material = higher cost

3. PVD coating — adds 30–60% over bare mirror

4. Pattern depth — deep/custom waves cost more

5. Order volume — factory MOQ often 50–100 sheets; single-sheet traders charge a markup

6. Cut-to-size service — pre-cut panels cost more but save on-site labor

• Factory direct: MOQ typically 1–3 tons or 50+ sheets per spec; lead time 15–25 working days

• Stockist / trader: 1–10 sheets available; lead time 3–7 days

• Ferosteel: standard sizes in stock for quick dispatch; custom PVD colors and cut sizes produced to order
